Ondax光学元件

Ondax光学元件

Ondax陷波滤光片不同于常见的薄膜滤光片，而是通过全息曝光技术制成的布拉格体光栅型滤光片，该滤光片对激光谱线的衰减能高达99.99%（OD4），且光谱的过渡带宽小于10cm-1。因此，Ondax低波数拉曼系统可以对瑞利散射达到OD8的抑制，同时收集低于10cm-1的正/反斯托克斯的信号。





Ondax陷波滤光片不同于常见的薄膜滤光片，而是通过全息曝光技术制成的布拉格体光栅型滤光片，该滤光片对激光谱线的衰减能高达99.99%（OD4），且光谱的过渡带宽小于10cm-1。因此，Ondax低波数拉曼系统可以对瑞利散射达到OD8的抑制，同时收集低于10cm-1的正/反斯托克斯的信号。

该系统可于常用的光谱仪连用，目前可得到的拉曼波长主要有：488nm，514nm，532nm，633nm，785nm，808nm，976nm, 和1064nm。也可以根据客户要求定制中心波长。

Filter Components
  Features Available Wavelengths (nm) Diameter (mm) Clear Aperture (mm)
Ondax光学元件


SureBlockTM
Notch Filters


  • Optical Density > 4
  • Transition width < 10 cm-1
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time
  • Requires compatible wavelength stabilized and collimated, ASE-free laser for optimal performance

488, 514, 532, 633, 785, 808, 976, 1064

25.4

 9
Ondax光学元件

NoiseBlockTM 90/10
Beamsplitter Filters
  • Diffraction Efficiency > 90%
  • Bandwidth < 10 cm-1
  • Operating angle 8-12 degrees
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time

488, 514, 532, 633, 785, 808, 976, 1064

25.4

9
Ondax光学元件

NoiseBlock
ASE Filters
  • Diffraction Efficiency > 90% (~70% for 405 nm)
  • Bandwidth < 10 cm-1
  • Operating angle 8-12 degrees
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time

405, 488, 514, 532, 633, 785, 808, 976, 1064

12.7

4.5




Filter Assemblies
  Features Available Wavelengths (nm) Dimensions (mm)
Ondax光学元件

SureBlock XLF
filter module
  • Includes 2 pre-aligned SureBlock notch filters
  • Free space or fiber optic input and output options
  • Bandwidth < 10 cm-1
  • Spatial filtering reduces collected Rayleigh scatter
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time

488, 514, 532, 633, 785, 808, 976, 1064

75 x 182 x 72

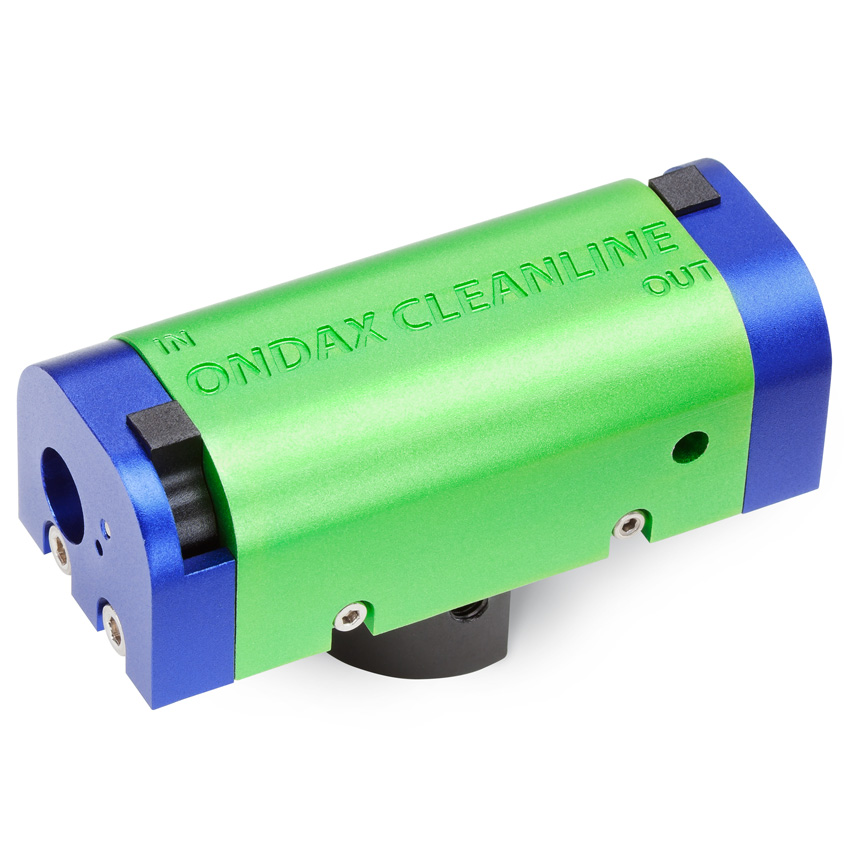

Ondax光学元件

CleanLineTM-FS
ASE clean-up


  • Compact, pre-aligned package
  • Integrated alignment targets
  • Built-in wavelength fine tuning adjustment
  • ASE suppression – better than –80 dB below laser line
  • 0.1 nm bandwidth
  • Temperature stability 10 pm/°C
  • High transmission throughput

405, 532, 633, 785

30 x 73 x 37
Ondax光学元件

CleanLine-LM
laser module
  • Compact, pre-aligned package incorporates laser, isolator and CleanLine-FS platform
  • Free space, collimated output beam
  • Ideal for use with SureBlock XLF or notch filters



405, 633, 785

219 x 77 x 60
